Features:
1. The core board is a core board designed based on ESP32-C3, with a size of only 21mm * 51mm;
2. The board edge adopts a stamp hole design, making it convenient for developers to use in different scenarios;
3. The core board supports interfaces such as UART, GPIO, SPI, l2C, ADC, PWM, etc., which can be selected according to actual needs;
4. The minimalist version is suitable for mass production. For personal development and debugging, it is recommended to purchase classic models with good compatibility and easy development;
5. Multi functional, the development board supports diverse development methods.
2. The board edge adopts a stamp hole design, making it convenient for developers to use in different scenarios;
3. The core board supports interfaces such as UART, GPIO, SPI, l2C, ADC, PWM, etc., which can be selected according to actual needs;
4. The minimalist version is suitable for mass production. For personal development and debugging, it is recommended to purchase classic models with good compatibility and easy development;
5. Multi functional, the development board supports diverse development methods.
Main differences:
Minimalist style:
Serial port chip: None
IDE debugging: not supported
Classic style:
Serial port chip: Yes
IDE debugging: supported
Parameter:

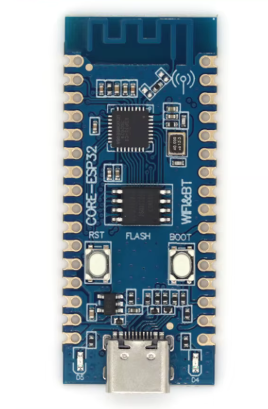

CORE-ESP32-C3
ESP32-C3 main control, main frequency 160MHz
On board 4MB flash,
CH343P chip
SPL Flash: 1 channel, onboard 4MB
UART interface: 2-way, UART0~UART1
12 bit ADC: 2 channels, with a maximum sampling rate of 100KSPS
Low speed SPI interface: 1 channel, supporting main mode
IIC controller: 1 channel
PWM interface: 4 channels

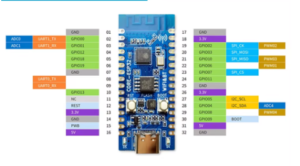

GPIO external pins: 15 channels, reusable
LED indicator lights: 2 channels
Reset button: 1 channel
BOOT button: 1 channel
USB to TTL download and debugging port: 1 channel, supporting automatic download
2.4G PCB onboard antenna
Size: 21mm x 51mm
